Main Frame

Previous Top Next

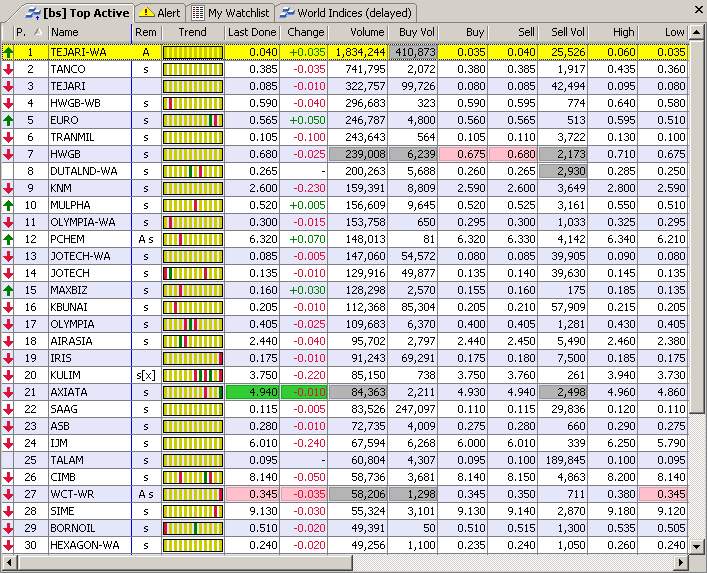

• The Main Frame displayed the various stocks/Alerts/Watchlists with their share prices, buy & sell information, percentage changes, Trend, remarks, etc.

• The Main Frame allows you to view up to 5 different channels. Selecting a 6th channel will cause the first open channel to be closed.

• Each channel can show up to 40 counters. (Except for Watchlist and Alerts)

Hint:

If the user wishes to keep a selection channel active, right click on the tab and select Keep Active. The pin icon

indicates that the channel will not be replaced.

Trend

The trend column, gives the user an overview of the performance of a counter over the last 12 trades. Each colored bar in the trend indicates that a trade has occurred.

Green	Indicates an increase in the last done price.
Yellow	Indicates that there has been no change in the last done price.
Red	Indicates a drop in the last done price.

To clear the bars in the trend, select Edit -> Clear Trend Column or press F12.

Rem

I	Order entry forbidden
A	Order entry authorized
G	Frozen
S	Suspended
R	Reserved
s	Short selling available
[x]	Exclude dividend
[c]	Cum dividend
Space	instrument open, or not provided
